Munsell EIA-TIA 598-A Rose Color Coding Chart

Munsell EIA-TIA 598-A Rose Color Coding Chart
-10 % Pre-Order
Munsell EIA-TIA 598-A Rose Color Coding Chart
₹11,675
₹12,972
Ex Tax: ₹11,675
  • Stock: Pre-Order
  • Model: M50052
  • SKU: M50052
  • UPC: M50052

Munsell EIA-TIA 598-A Rose Color Coding Chart

SKU: M50052

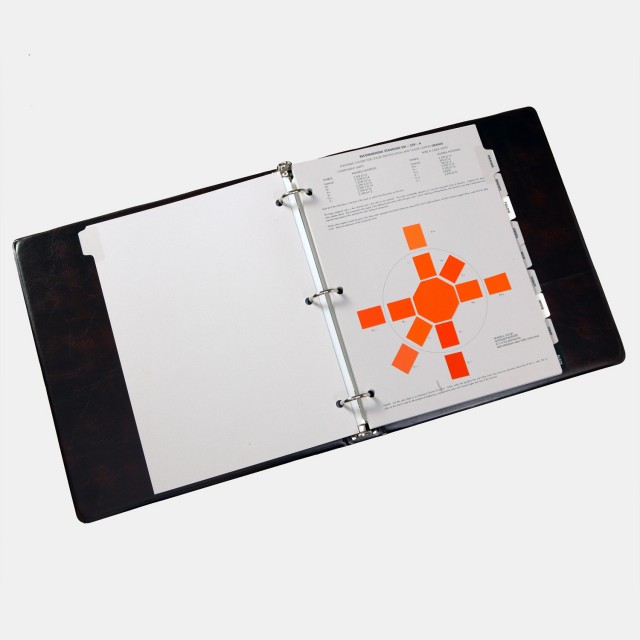

These are used for color coding of wire and cable insulation and by Electronic Industries Association (EIA RS359-A) for use with electronics components. It includes ten 81/2” x 11” color charts in a binder: red, orange, brown, yellow, green, blue, violet (purple), white, gray (slate) and black. Each chart defines the centroid (ideal) color and the permissible visual tolerances.

Meet Electronic Industries Association (EIA) Color Coding Specification, EIA RS359-A, for Wire Colors



Electronics Industries Association (EIA) specification EIA RS359-A identifies electrical wire color codes for wire and cable insulation.  Whether you manufacture or specify electrical wires, Munsell wiring color standards help you ensure lot-to-lot color consistency.
Learn more about EIA color coding charts at the EIA website.



Munsell Color Coding Charts for Electrical Wire (EIA RS359-A) Include:

·        Ten (10), 8-1/2″ x 11″ color code charts in a binder for the following wire colors:  red, orange, brown, yellow, green, blue, violet (purple), white, gray (slate) and black.

·        Single color code charts, one each for aqua and rose wire color codes.

Supplemental Munsell Color Coding Charts for Telecom Cable and Fiber Optics (EIA –TIA 598-A) Include:

·        Single color code charts, one each for aqua and rose wire color codes.



How Electrical Color Coding Charts Work

The center color (a.k.a. “centroid color”) of each wire color code represents the ideal color. However, given numerous manufacturing variables in the production of electrical wires, which can affect wire color, the color coding chart includes several permissible color variations or “tolerances.”  The color tolerances represent the maximum allowable visual color variations from the center color code.

Format

  • Rose single chart for color coding telecom cable and fiber optics.

Technical Details

  • Item Model Number :                              M50052
  • Brand :                                                        Pantone
  • Product Dimensions :                              81/2’’x11’’  color charts in binder
  • Total Number of Colour’s :                     10
  • Item Package Quantity :                          1 Pcs.
